Bamboo Structural Load Systems in Built Practice
- Prashant Lingam
- Jan 30
- 3 min read
Full-scale bamboo structural experiment · Hyderabad · multi-storey construction
Context
The purpose of this project was to determine whether whole bamboo could be used as the main structure within multi-level building design. The design brief was particularly demanding since it had to feature the design and development of a double-floor structure with a clear height of 20 feet and all the structural elements were prefabricated at the workshop. The structure was supposed to be on the third floor of a building, which effectively translates to a structure erected about 40 feet above ground level. The focus was neither on modeling it to determine its feasibility nor on the general performance of whole bamboo under concentrated loads. It was conceived to explore how it behaves under heights, concentrated loads, wind effect, fabrication challenges, cost parameters, and joinery issues.
Material & System

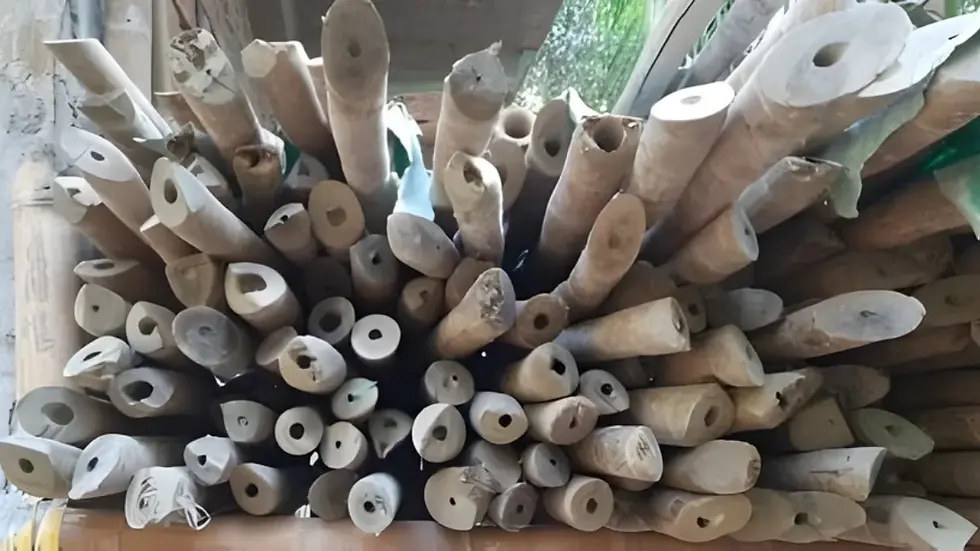

The entire structure was constructed using treated bamboo of the species Bambusa balcooa. The average maturity of the material used was approximately 3.5 years, procured from North-East India. This species was selected for the structural framework due to its thicker wall section, higher compressive strength, and availability in suitable lengths for structural use.
Each floor height was kept at 10 feet. To achieve the required 20-foot column height, two 10-foot bamboo columns were joined using a bamboo spacer, forming a single continuous column. The mezzanine floor was supported by 18 mm bamboo plyboard laid over a bamboo grid of 4 ft × 4 ft. This grid was connected to the main structural members using 8 mm threaded rods.
The total dead load of the mezzanine floor exceeded 1.25 tonnes. The structural premise was to transfer this load to a centrally positioned staircase, which acted as the primary load-bearing element of the system, rather than distributing the load equally to the columns located at the periphery.
Process
The construction process involved creating a vertical bamboo structure rising 20 feet from the second-floor slab, with each floor measuring 10 ft in height and covering approximately 800 square feet of area. Fabrication of the entire structure was carried out in the workshop using a combination of mechanical, traditional methods and complex joinery systems. In the completed structure, the staircase was designed to provide stability by receiving the mezzanine load through intersecting beams.
The complexity of the task was increased by the requirement to work at significant heights. Movement at this level was clearly perceivable, allowing the swaying motion of the structure to be observed.
Outcome
The structure supported the prescribed load without evidence of buckling or joint failure, thereby validating the load-bearing capacity of the system. However, the performance of the structure revealed critical sensitivities related to joint detailing, cumulative tolerance errors, and increased movement resulting from wind loads at height. Minor deflections and audible friction at joint interfaces were observed during peak wind conditions. It is important to note that these observations relate to comfort and rigidity limitations rather than structural failure.
The construction process slowed considerably as the structure rose in height, primarily due to the increased labour intensity and the level of precision required during assembly.
Learning
This project demonstrated that prefabricated housing structural elements in whole bamboo can support significant structural loads when system design, material selection, and load paths are carefully controlled. However, it also revealed that height amplifies every design and execution error, making precision and skilled labour non-negotiable. Centralized load transfer systems are viable, but they demand rigorous detailing and continuous monitoring. The experiment reinforced that bamboo’s structural potential is real, yet tightly bounded by workmanship quality, environmental forces, and the realities of building at height.
